UVB radiation and vitamin D balance

Reinhold Koch

2023-12-06

Background

Vitamin D has attracted considerable attention in recent years

  • humans produce vitamin D in their skin using UVB from sunlight
  • values neither for minimum nor maximum (!) blood concentration of vitamin D are universally accepted
  • with little UV - as in winter - natural supply seems to be too low in our latitude

Clinical study UVB -> vitamin D

interesting article 2021 in PNAS: https://www.pnas.org/doi/10.1073/pnas.2015867118

  • 75 participants in London
  • 5 times UVB irradiated in 3-4 days time intervals
  • 5 different UVB sources
  • full body or partial exposure
  • what can I see when I redo the authors’ analysis?

Data

Most journals require also data to be published.

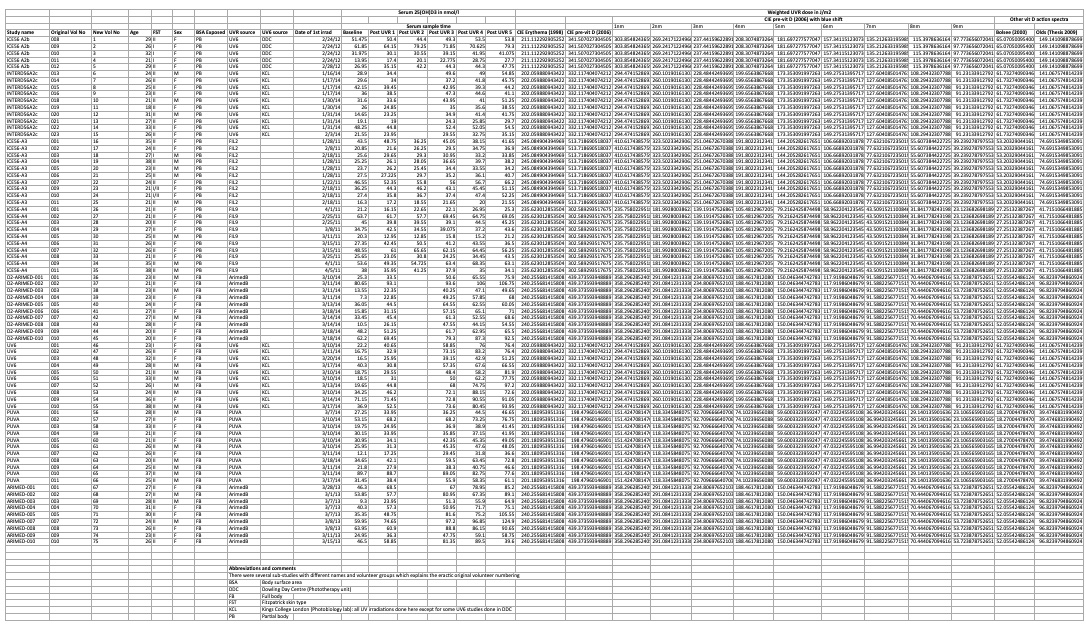

Here it is an excel spreadsheet stored on https://osf.io, freely accessible:

Download data

downloading the data into temporary file tf

tf <- tempfile(pattern = 'vitamin_d', fileext = '.xlsx')
download.file('https://osf.io/download/3x2q8/', destfile = tf)
  • there is a legend block underneath the data block
  • variable names are going to be fun!
print(readxl::read_xlsx(tf, col_names = FALSE), n=5)
# A tibble: 90 × 29
  ...1      ...2  ...3  ...4  ...5  ...6  ...7  ...8  ...9  ...10 ...11 ...12 ...13 ...14 ...15 ...16 ...17 ...18
  <chr>     <chr> <chr> <chr> <chr> <chr> <chr> <chr> <chr> <chr> <chr> <chr> <chr> <chr> <chr> <chr> <chr> <chr>
1 <NA>      <NA>  <NA>  <NA>  <NA>  <NA>  <NA>  <NA>  <NA>  <NA>  Seru… <NA>  <NA>  <NA>  <NA>  <NA>  Weig… <NA>
2 <NA>      <NA>  <NA>  <NA>  <NA>  <NA>  <NA>  <NA>  <NA>  <NA>  <NA>  <NA>  <NA>  <NA>  <NA>  <NA>  <NA>  <NA>
3 <NA>      <NA>  <NA>  <NA>  <NA>  <NA>  <NA>  <NA>  <NA>  <NA>  Seru… <NA>  <NA>  <NA>  <NA>  <NA>  <NA>  <NA>
4 Study na… Orig… New … Age   FST   Sex   BSA … UVR … UV6 … Date… Base… Post… Post… Post… Post… Post… CIE … CIE …
5 ICE56 A2b 008   1     29    II    F     PB    UV6   DDC   40963 51.4… 50.4  44.4… 49.3  53.5  53.8  211.… 341.…
# ℹ 85 more rows
# ℹ 11 more variables: ...19 <chr>, ...20 <chr>, ...21 <chr>, ...22 <chr>, ...23 <chr>, ...24 <chr>,
#   ...25 <chr>, ...26 <chr>, ...27 <chr>, ...28 <chr>, ...29 <chr>

Name variables

  • strip off all rows that have empty first column
  • Row 4 and 3 seem to describe the column
dat0 <- readxl::read_xlsx(tf, skip = 4, col_names = FALSE) |>
  dplyr::filter(!is.na(...1))
nam <- readxl::read_xlsx(tf, skip = 2, n_max = 1)
names(dat0) <- unname(dplyr::coalesce(unlist(nam),
                                      paste0('blue', names(nam))))

Fix variable names

blanks are bad in names, but ‘-’ and ‘(’ are even worse

names(dat0) <- vapply(X = names(dat0),
                      FUN = function(x) {
  if (x == 'New Vol No') return('pid')
  if (startsWith(x, 'CIE pre')) return('blue0nm')
  if (stringr::str_count(x, ' ') == 1) {
    # up to first (and only) blank
    return(stringr::str_split_1(x, ' ')[1])
  }
  if (stringr::str_count(x, ' \\(')) {
    # up to first ( and replace blanks with underscores
    gsub(' ', '_', stringr::str_split_1(x, pattern = ' \\(')[[1]])
  } else x
},
                      FUN.VALUE = 'character')

Variable names

str(dat0)
tibble [75 × 29] (S3: tbl_df/tbl/data.frame)
 $ Study            : chr [1:75] "ICE56 A2b" "ICE56 A2b" "ICE56 A2b" "ICE56 A2b" ...
 $ Original Vol No  : chr [1:75] "008" "009" "010" "011" ...
 $ pid              : num [1:75] 1 2 3 4 5 6 7 8 9 10 ...
 $ Age              : num [1:75] 29 26 32 21 29 24 26 25 23 21 ...
 $ FST              : chr [1:75] "II" "I" "I" "I" ...
 $ Sex              : chr [1:75] "F" "F" "F" "F" ...
 $ BSA              : chr [1:75] "PB" "PB" "PB" "PB" ...
 $ UVR              : chr [1:75] "UV6" "UV6" "UV6" "UV6" ...
 $ UV6              : chr [1:75] "DDC" "DDC" "DDC" "DDC" ...
 $ Date of 1st irrad: POSIXct[1:75], format: "2012-02-24" "2012-02-24" "2012-02-24" "2012-02-24" ...
 $ Baseline         : num [1:75] 51.5 61.8 32 13.9 26.9 ...
 $ Post UVR 1       : num [1:75] 50.4 64.2 30.1 17.4 35.2 ...
 $ Post UVR 2       : num [1:75] 44.4 79.2 30.5 20.1 42.2 ...
 $ Post UVR 3       : num [1:75] 49.3 71.8 39.1 22.8 44.3 ...
 $ Post UVR 4       : num [1:75] 53.5 70.6 42 28.8 44.3 ...
 $ Post UVR 5       : num [1:75] 53.8 79.3 41.1 27.7 47.8 ...
 $ CIE_Erythema     : num [1:75] 211 211 211 211 211 ...
 $ blue0nm          : num [1:75] 342 342 342 342 342 ...
 $ blue1nm          : num [1:75] 304 304 304 304 304 ...
 $ blue2nm          : num [1:75] 269 269 269 269 269 ...
 $ blue3nm          : num [1:75] 237 237 237 237 237 ...
 $ blue4nm          : num [1:75] 208 208 208 208 208 ...
 $ blue5nm          : num [1:75] 182 182 182 182 182 ...
 $ blue6nm          : num [1:75] 157 157 157 157 157 ...
 $ blue7nm          : num [1:75] 135 135 135 135 135 ...
 $ blue8nm          : num [1:75] 115 115 115 115 115 ...
 $ blue9nm          : num [1:75] 97.8 97.8 97.8 97.8 97.8 ...
 $ Bolsee           : num [1:75] 65.1 65.1 65.1 65.1 65.1 ...
 $ Olds             : num [1:75] 149 149 149 149 149 ...

Create time variable

Variables Baseline, Post UVR 1, Post UVR 2, … provide the D3 measurements at the consecutive visits. For a decent model I want an explicit time variable.

dat_ts <- dat0 |>
  dplyr::select(-c('Study', 'Original Vol No', 'Date of 1st irrad')) |>
  tidyr::pivot_longer(
    cols = c('Baseline',
             tidyselect::starts_with('Post', ignore.case=FALSE)),
    values_to = 'd3',
    values_drop_na = TRUE) |>
  dplyr::mutate(
    time = dplyr::coalesce(
      as.integer(stringr::str_split_i(name, ' ', 3)), 0),
    .after = UV6)

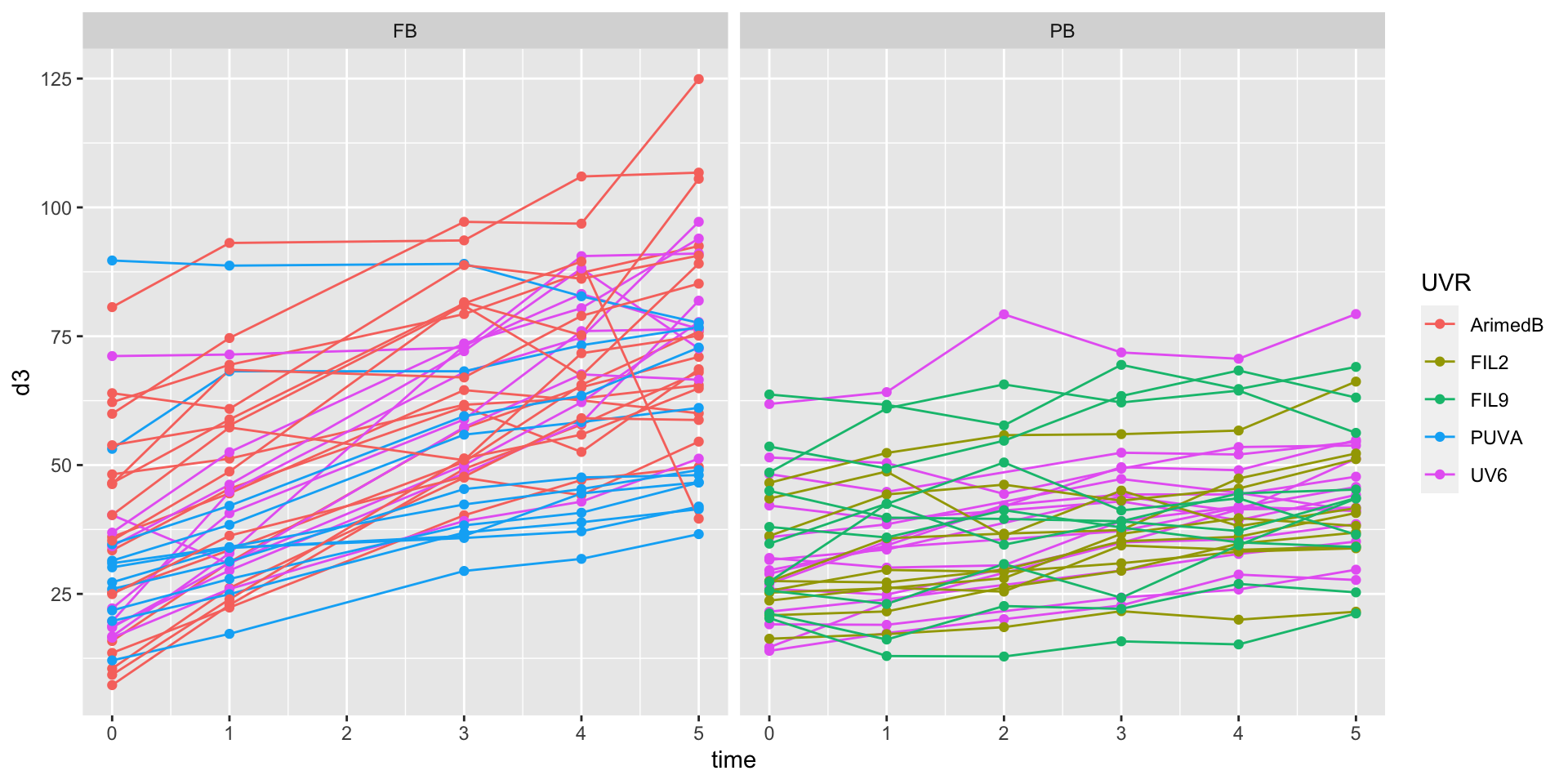

Full vs partial body irradiation

ggplot(dat_ts, aes(x=time, y=d3, group=pid, color=UVR)) +
  geom_line() + geom_point() + facet_wrap(vars(BSA))

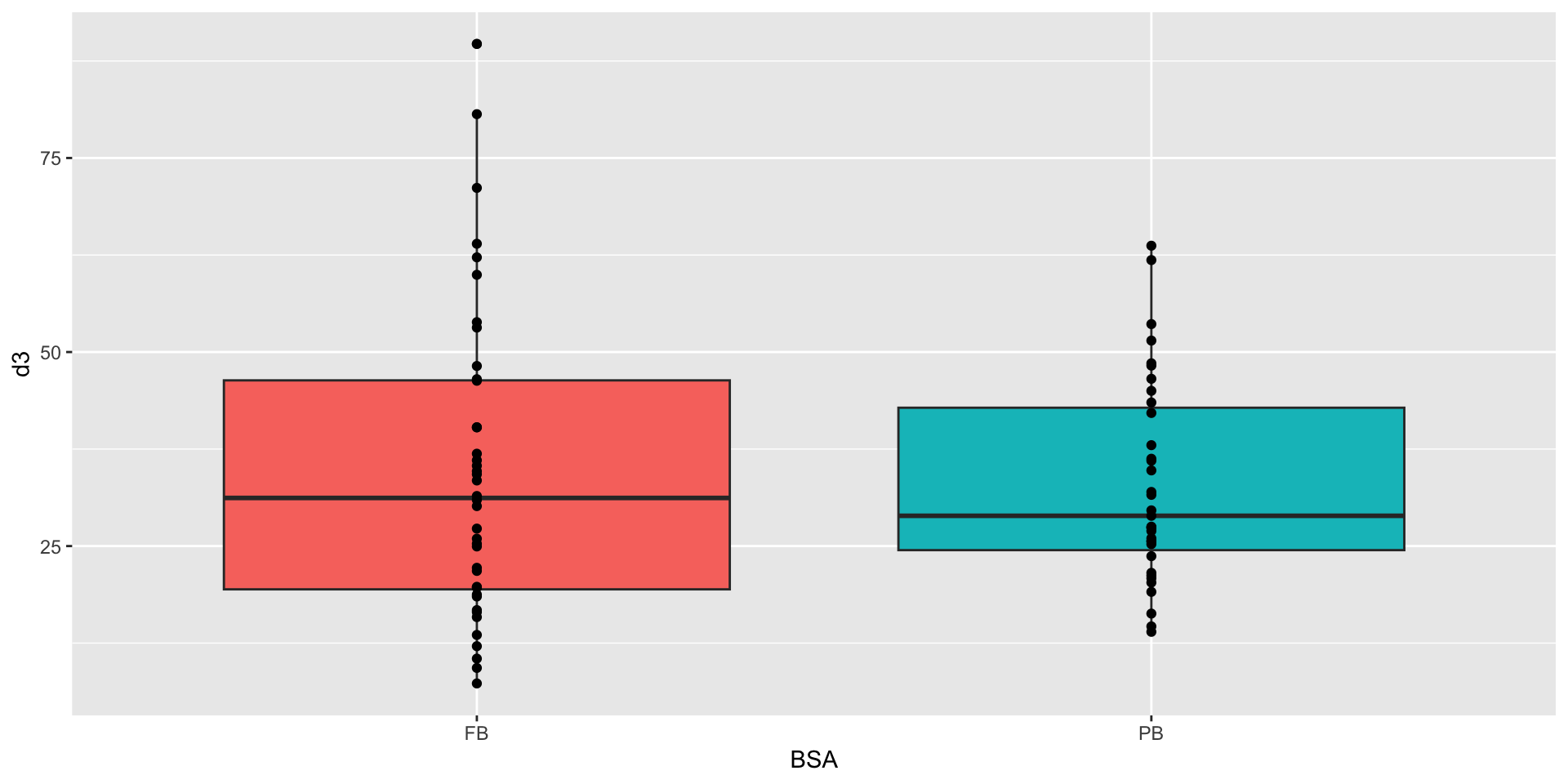

Control of similar baseline

ggplot(data=dat_ts |> dplyr::filter(time == 0),
       aes(x=BSA, y=d3, group=BSA, fill=BSA)) +
  geom_boxplot() +
  geom_point() + theme(legend.position="none")

Mixed model

options(width=78)
(m1 <- lme4::lmer(d3 ~ time + BSA:time + UVR:time + (time|pid),
                  data = dat_ts))
Linear mixed model fit by REML ['lmerMod']
Formula: d3 ~ time + BSA:time + UVR:time + (time | pid)
   Data: dat_ts
REML criterion at convergence: 2811.554
Random effects:
 Groups   Name        Std.Dev. Corr
 pid      (Intercept) 16.629
          time         1.983   -0.51
 Residual              5.180
Number of obs: 400, groups:  pid, 75
Fixed Effects:
 (Intercept)          time    time:BSAPB  time:UVRFIL2  time:UVRFIL9
     34.7330        8.0092       -7.1377        1.1129        0.6351
time:UVRPUVA   time:UVRUV6
     -3.9687        1.7181

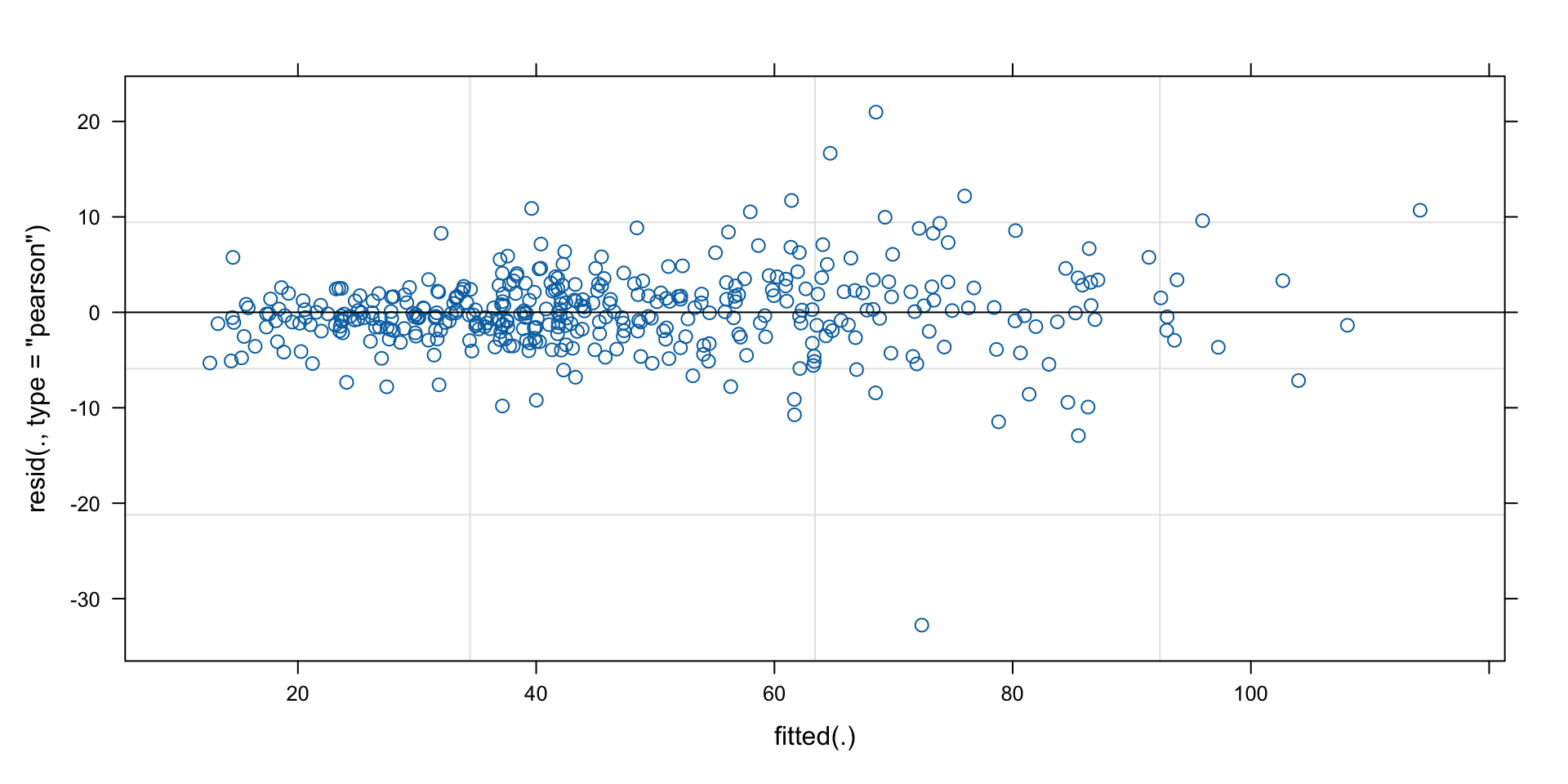

Quality control: residuals vs predictions

plot(m1)

Confidence intervals of model parameters

mixedup::summarise_model(m1)
    Group    Effect Variance    SD SD_2.5 SD_97.5 Var_prop
      pid Intercept   276.53 16.63  14.04   19.71     0.90
      pid      time     3.93  1.98   1.48    2.39     0.01
 Residual        NA    26.83  5.18   4.76    5.67     0.09
         Term Value   SE     t P_value Lower_2.5 Upper_97.5
    Intercept 34.73 1.97 17.61    0.00     30.87      38.60
         time  8.01 0.48 16.70    0.00      7.07       8.95
   time:BSAPB -7.14 0.82 -8.75    0.00     -8.74      -5.54
 time:UVRFIL2  1.11 1.13  0.99    0.32     -1.10       3.33
 time:UVRFIL9  0.64 1.13  0.56    0.57     -1.58       2.85
 time:UVRPUVA -3.97 0.76 -5.24    0.00     -5.45      -2.48
  time:UVRUV6  1.72 0.78  2.20    0.03      0.19       3.25

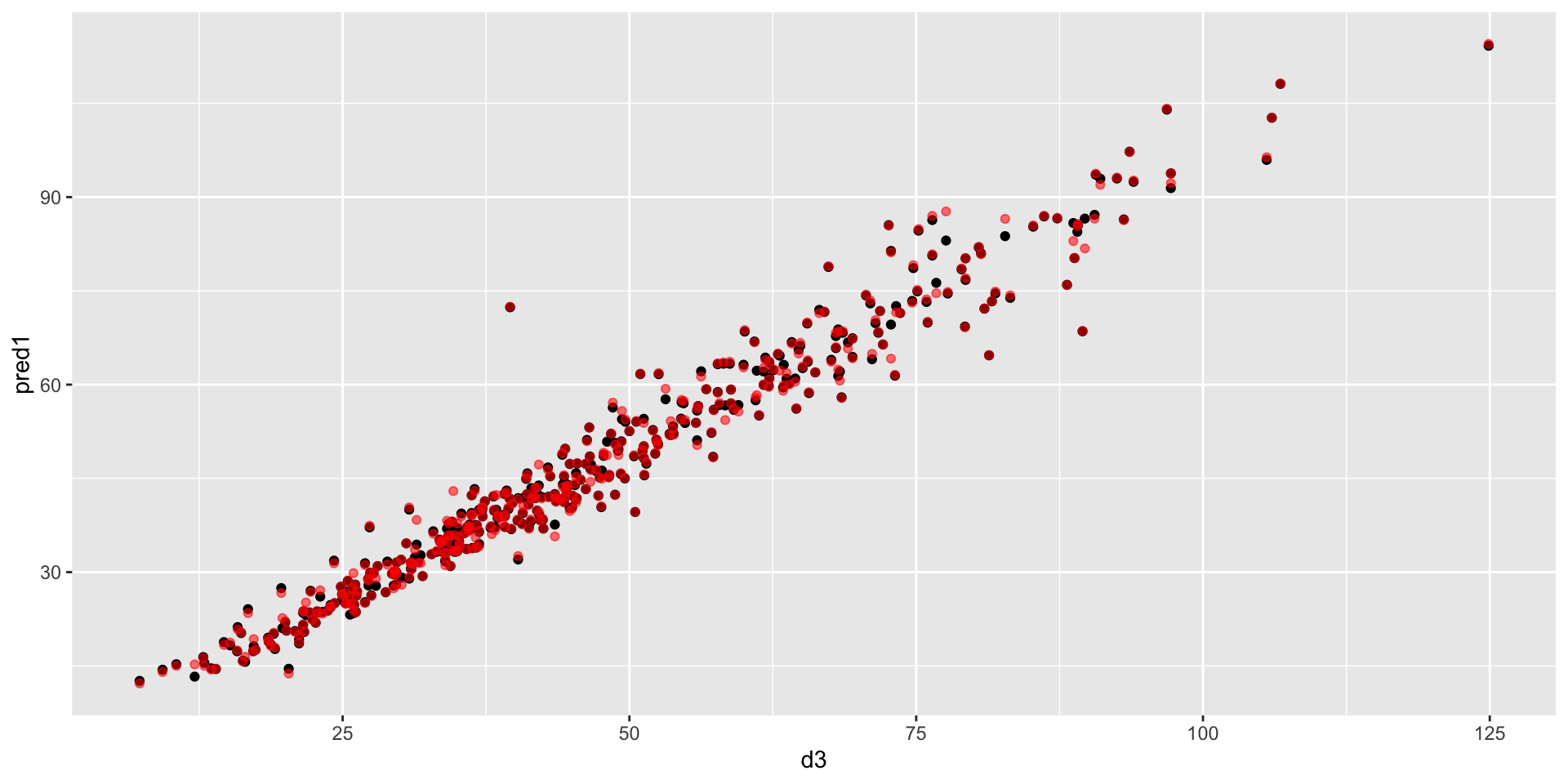

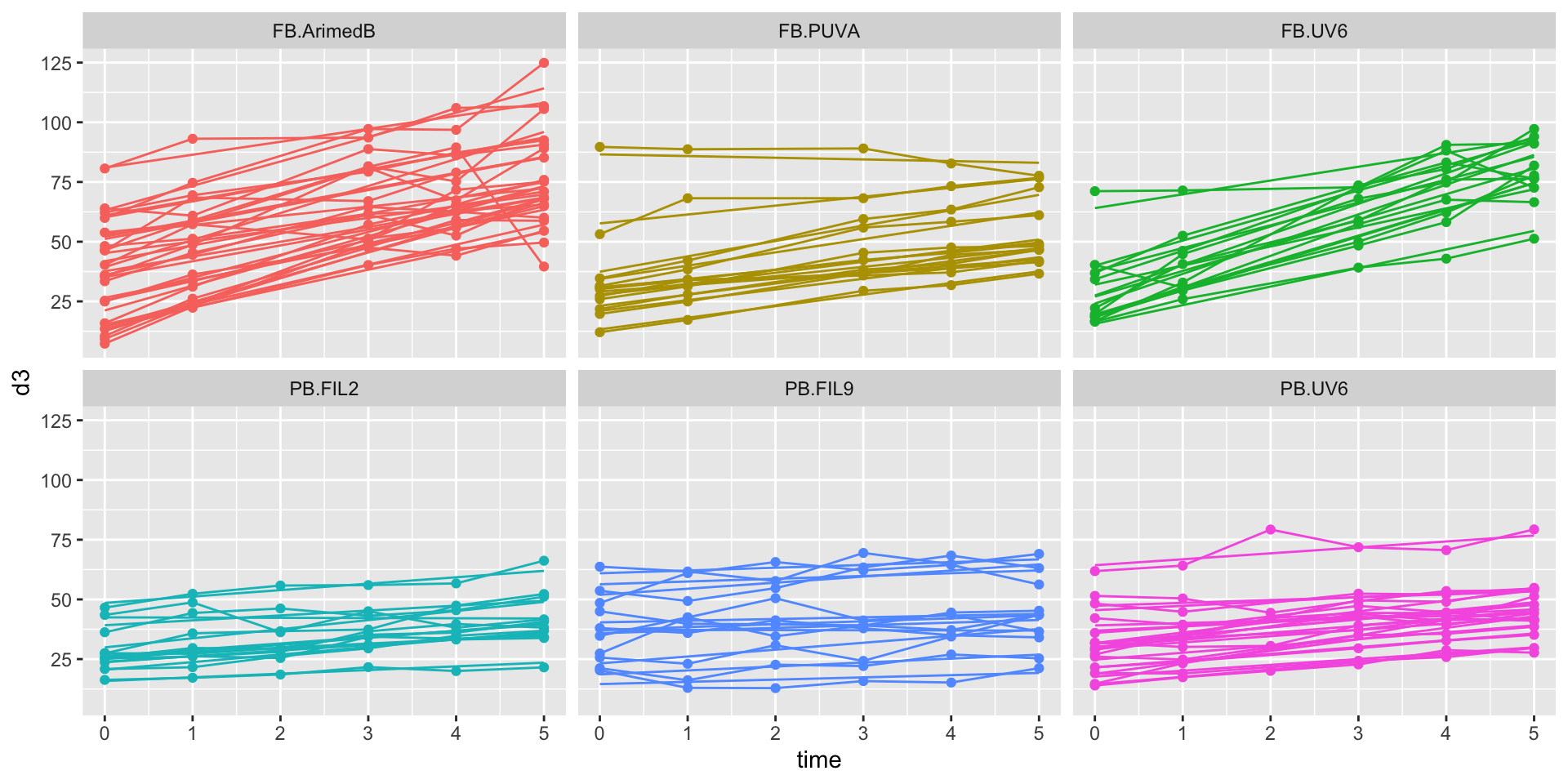

D3 time courses by exposure & by radiation source

# import model prediction
# create a factor of all combinations of BSA and UVR
# replace radiation doses with cumulative dose over study
dat <- dat_ts |>
  dplyr::mutate(pred1=predict(m1),
                BSA_UVR=interaction(BSA,UVR, lex.order = TRUE),
                across(CIE_Erythema:Olds, function(x) x*time/100))
ggplot2::ggplot(
  data=dat,
  aes(x=time, y=d3, color=BSA_UVR, group=BSA_UVR)) +
  geom_point() + geom_path(aes(group=pid)) +
  geom_path(aes(group=pid, y=pred1)) +
  ggplot2::facet_wrap(~BSA_UVR) + theme(legend.position = "none")

D3 time courses by exposure & by radiation source

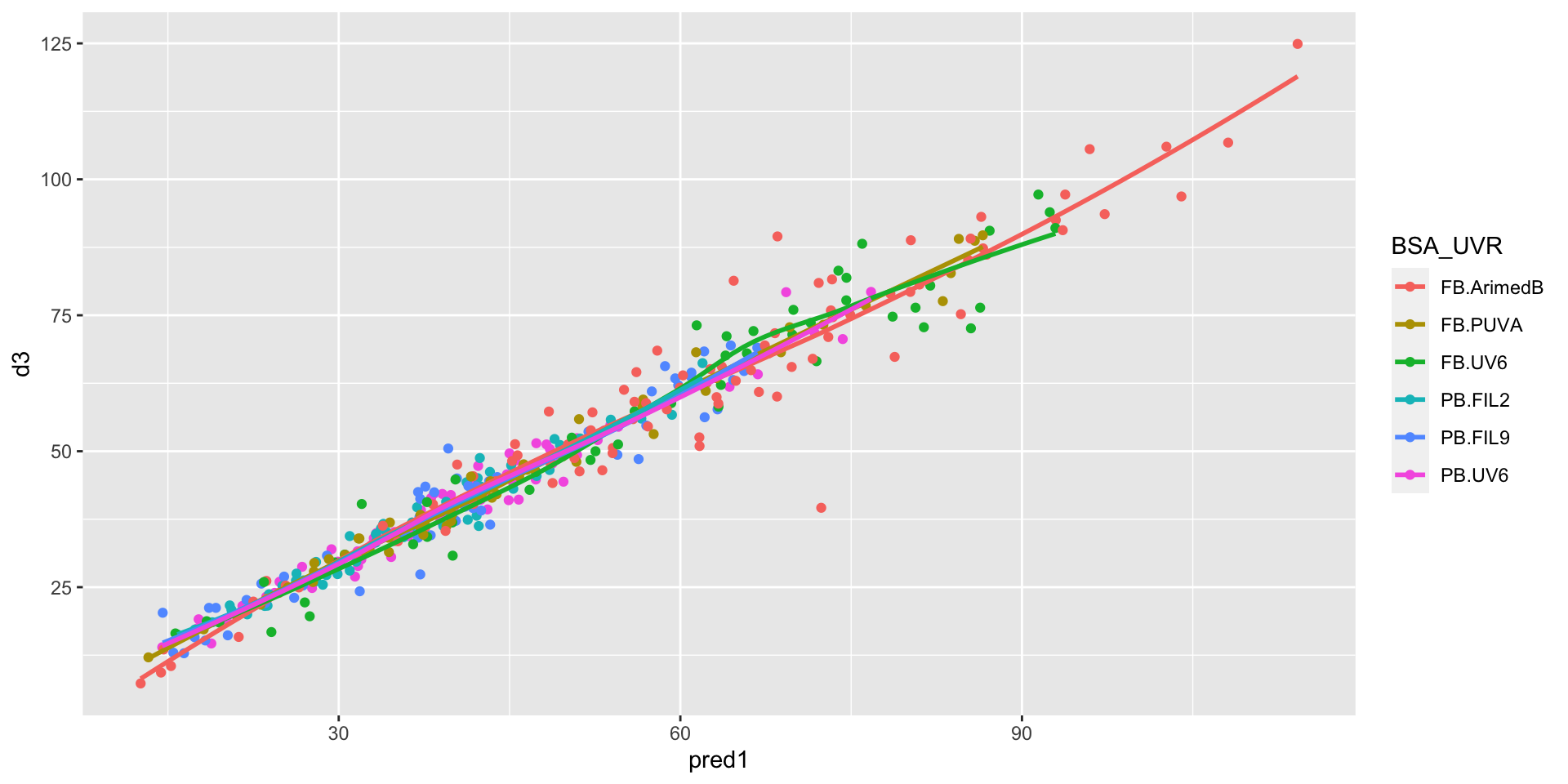

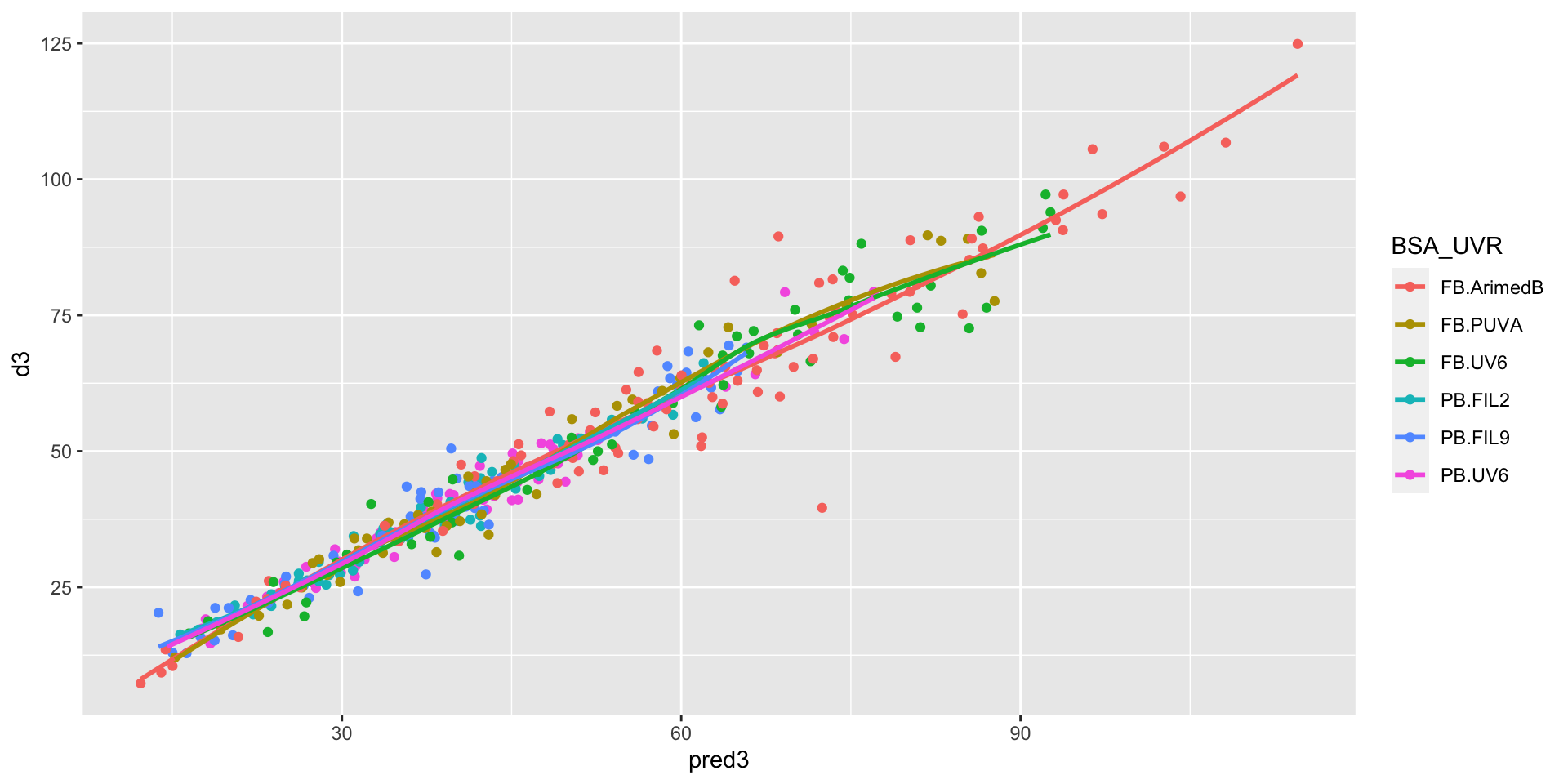

Measurements vs predictions

ggplot(aes(x=pred1, y=d3, colour=BSA_UVR, group=BSA_UVR), data=dat) +
  geom_point() + geom_smooth(se=FALSE)

Correlation of radiation profiles with predicted D3

stats::cor(dat |> dplyr::select(c('d3', tidyselect::starts_with('blue'))))
               d3   blue0nm   blue1nm   blue2nm   blue3nm   blue4nm   blue5nm
d3      1.0000000 0.4131079 0.4207088 0.4289413 0.4354258 0.4402644 0.4416013
blue0nm 0.4131079 1.0000000 0.9968950 0.9870326 0.9692452 0.9431757 0.9087768
blue1nm 0.4207088 0.9968950 1.0000000 0.9965712 0.9854712 0.9660437 0.9381268
blue2nm 0.4289413 0.9870326 0.9965712 1.0000000 0.9961381 0.9840550 0.9634114
blue3nm 0.4354258 0.9692452 0.9854712 0.9961381 1.0000000 0.9958556 0.9831601
blue4nm 0.4402644 0.9431757 0.9660437 0.9840550 0.9958556 1.0000000 0.9957017
blue5nm 0.4416013 0.9087768 0.9381268 0.9634114 0.9831601 0.9957017 1.0000000
blue6nm 0.4374423 0.8667492 0.9023448 0.9346632 0.9621595 0.9829376 0.9957418
blue7nm 0.4287545 0.8189607 0.8603039 0.8991626 0.9339357 0.9625240 0.9834741
blue8nm 0.4166475 0.7679570 0.8143766 0.8590846 0.9004365 0.9361598 0.9646269
blue9nm 0.4023697 0.7165619 0.7672847 0.8170271 0.8641078 0.9061162 0.9412731
          blue6nm   blue7nm   blue8nm   blue9nm
d3      0.4374423 0.4287545 0.4166475 0.4023697
blue0nm 0.8667492 0.8189607 0.7679570 0.7165619
blue1nm 0.9023448 0.8603039 0.8143766 0.7672847
blue2nm 0.9346632 0.8991626 0.8590846 0.8170271
blue3nm 0.9621595 0.9339357 0.9004365 0.8641078
blue4nm 0.9829376 0.9625240 0.9361598 0.9061162
blue5nm 0.9957418 0.9834741 0.9646269 0.9412731
blue6nm 1.0000000 0.9959728 0.9848030 0.9683425
blue7nm 0.9959728 1.0000000 0.9964056 0.9868094
blue8nm 0.9848030 0.9964056 1.0000000 0.9969735
blue9nm 0.9683425 0.9868094 0.9969735 1.0000000

cumulative irradiation dose instead of time

(m2 <- lme4::lmer(d3 ~ blue5nm + BSA:blue5nm + UVR:blue5nm + (blue5nm|pid),
                  data = dat,
                  control=lmerControl(optimizer = 'Nelder_Mead')))
Linear mixed model fit by REML ['lmerMod']
Formula: d3 ~ blue5nm + BSA:blue5nm + UVR:blue5nm + (blue5nm | pid)
   Data: dat
REML criterion at convergence: 2817.294
Random effects:
 Groups   Name        Std.Dev. Corr
 pid      (Intercept) 16.48
          blue5nm      1.42    -0.53
 Residual              5.27
Number of obs: 400, groups:  pid, 75
Fixed Effects:
    (Intercept)          blue5nm    blue5nm:BSAPB  blue5nm:UVRFIL2
        34.7326           5.3637          -4.1213           0.1152
blue5nm:UVRFIL9  blue5nm:UVRPUVA   blue5nm:UVRUV6
         0.5710           1.3815           0.2030

Quality control: residuals vs predictions

plot(m2)

Confidence intervals of model 2 parameters

mixedup::summarise_model(m2)
    Group    Effect Variance    SD SD_2.5 SD_97.5 Var_prop
      pid Intercept   271.74 16.48  13.91   19.54     0.90
      pid   blue5nm     2.02  1.42   1.03    1.75     0.01
 Residual        NA    27.77  5.27   4.84    5.77     0.09
            Term Value   SE     t P_value Lower_2.5 Upper_97.5
       Intercept 34.73 1.96 17.74    0.00     30.89      38.57
         blue5nm  5.36 0.34 16.01    0.00      4.71       6.02
   blue5nm:BSAPB -4.12 0.55 -7.56    0.00     -5.19      -3.05
 blue5nm:UVRFIL2  0.12 0.77  0.15    0.88     -1.40       1.63
 blue5nm:UVRFIL9  0.57 0.86  0.66    0.51     -1.12       2.27
 blue5nm:UVRPUVA  1.38 0.76  1.81    0.07     -0.11       2.87
  blue5nm:UVRUV6  0.20 0.53  0.38    0.70     -0.84       1.24
  • That means the source of UVB radiation, UVR, is not significant here!

simplest(?) model

(m3 <- lme4::lmer(d3 ~ blue5nm + BSA:blue5nm + (blue5nm|pid),
                  data = dat,
                  control=lmerControl(optimizer = 'Nelder_Mead')))
Linear mixed model fit by REML ['lmerMod']
Formula: d3 ~ blue5nm + BSA:blue5nm + (blue5nm | pid)
   Data: dat
REML criterion at convergence: 2824.432
Random effects:
 Groups   Name        Std.Dev. Corr
 pid      (Intercept) 16.494
          blue5nm      1.401   -0.54
 Residual              5.283
Number of obs: 400, groups:  pid, 75
Fixed Effects:
  (Intercept)        blue5nm  blue5nm:BSAPB
       34.902          5.582         -4.109

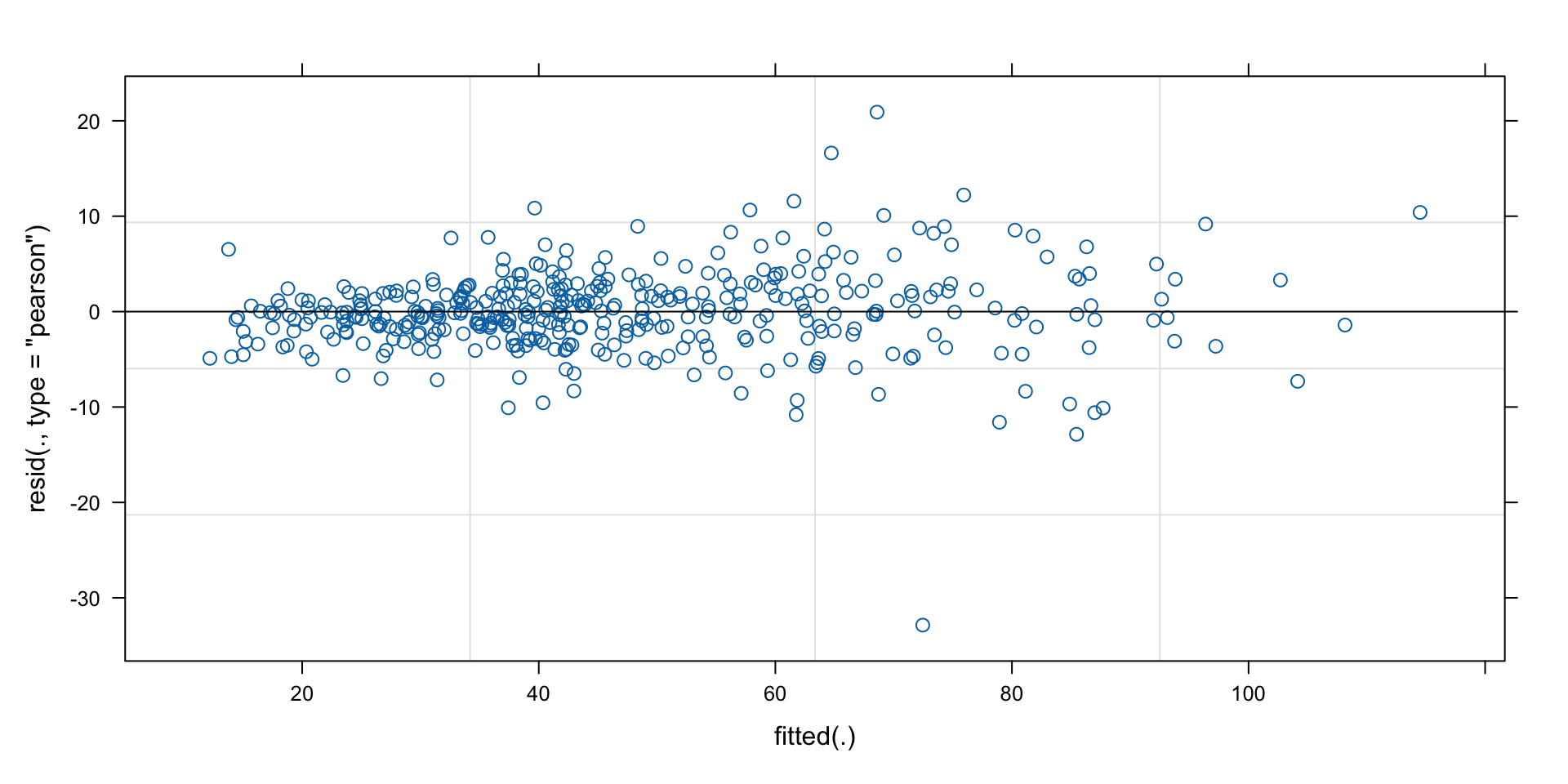

Quality control: residuals vs predictions

plot(m3)

Confidence intervals of model 3 parameters

mixedup::summarise_model(m3)
    Group    Effect Variance    SD SD_2.5 SD_97.5 Var_prop
      pid Intercept   272.06 16.49  13.92   19.55     0.90
      pid   blue5nm     1.96  1.40   1.04    1.77     0.01
 Residual        NA    27.91  5.28   4.85    5.79     0.09
          Term Value   SE      t P_value Lower_2.5 Upper_97.5
     Intercept 34.90 1.96  17.83    0.00     31.07      38.74
       blue5nm  5.58 0.26  21.59    0.00      5.07       6.09
 blue5nm:BSAPB -4.11 0.34 -12.11    0.00     -4.77      -3.44

Measurements vs final predictions

dat_final <- dat |>
  dplyr::mutate(pred3=predict(m3))
ggplot(aes(x=pred3, y=d3, colour=BSA_UVR, group=BSA_UVR), data=dat_final) +
  geom_point() + geom_smooth(se=FALSE)

comparison of prediction quality

ggplot(data=dat_final, aes(x=d3, y=pred1)) + geom_point(color='black') +
  geom_point(aes(y=pred3, alpha=0.4), color='red') +
  theme(legend.position="none")

Basel Data Science
